Installing Ranger KMS in a federated deployment

Install Ranger Key Management System (KMS) in a federated deployment to isolate encryption key lifecycles within a dedicated security cluster separated from the data cluster.

Application and data processing occur in a data cluster. The data cluster stores and processes actual datasets but does not directly manage encryption keys. Instead, a separately managed security cluster with the Ranger KMS service installed handles the key lifecycle operations, for example, generation, rotation, and storage. This separation of tasks enhances security by isolating the administration of the data cluster from the security cluster. Additionally, this architecture provides the following benefits:
  • Improved scaling, which enables you to migrate to a shared cluster of horizontally scaled Ranger KMS instances.
  • Isolation of service handling keys, which ensures that the keys are accessible only by the security team.

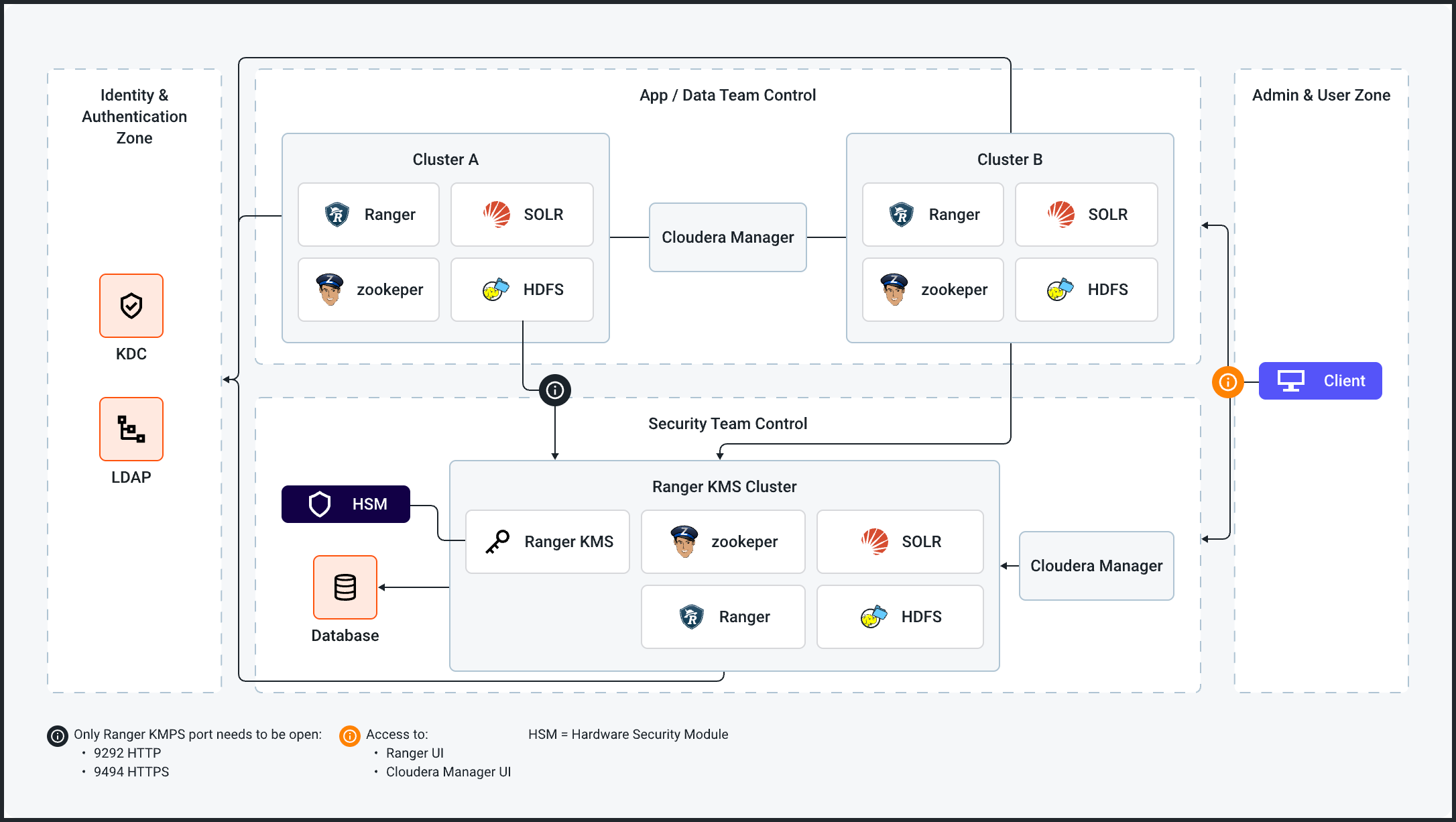

Ranger KMS can be deployed in a federated cluster for key management. The following diagram shows the architecture of a federated deployment:
Figure 1. Federated deployment architecture


At least the following services are required for data clusters:

  • Ranger

  • Solr

  • ZooKeeper

  • HDFS

At least the following services are required for the federated Ranger KMS cluster:

  • Ranger KMS

  • Ranger

  • Solr

  • ZooKeeper

  • HDFS – HDFS is required in the security cluster to capture audit activities related to Ranger KMS.

  • Verify that the following requirements are met:
    • The cluster in which Cloudera Manager and the Ranger service are installed must be running.
    • Kerberos must be enabled in your cluster.
    • TLS/SSL must be enabled in your cluster.
    • A Ranger KMS database must have been created as the underlying keyStore mechanism. This database must be separate from the Ranger database.
    • You must have securely recorded the following backing key store database access credentials, as you will need them during the installation steps:
      • The database name.
      • The database hostname.
      • The user name and password that have full administrative privileges to the backing key store database.
  • Data clusters and the security cluster must be in the same Kerberos realm.
  • Data clusters and the security cluster must use the same Ranger Usersync configuration for syncing users. Ensure that the AD/LDAP-related configuration properties have the same values set in both the data and security clusters. For more information, refer to Ranger Usersync.
  • Data clusters and the security cluster must have the same users at the Unix level.
  • You must configure HA for Ranger KMS. For more information, refer to Configure High Availability for Ranger KMS with DB.
  1. Add a Ranger KMS service.
    For instructions, refer to Installing the Ranger KMS service.
  2. Optional: Restart the stale services and redeploy the client configuration.
    For instructions, refer to Restarting the stale services and redeploying the client configuration.
  3. Configure data clusters.
    Data clusters must have access to Ranger KMS running on the security cluster. To do so, perform the following steps:
    1. Go to Cloudera Manager > Core Settings > Configuration > Cluster-wide Advanced Configuration Snippet (Safety Valve) for core-site.xml.
    2. Add the following property:
      • Name: hadoop.security.key.provider.path
      • Value: kms://http@kms_host1;kms_host2:kms_port/kms
    3. Go to Cloudera Manager > HDFS > Configuration > HDFS Service Advanced Configuration Snippet (Safety Valve) for hdfs-site.xml.
    4. Add the following property:
      • Name: hadoop.security.key.provider.path
      • Value: kms://http@kms_host1;kms_host2:kms_port/kms
  4. Optional: Validate the data encryption.
    For instructions, refer to Validating data encryption to-and-from HDFS.
