Installing in internet environment

Follow the steps in this topic to install Cloudera on premises.

Ensure that your Kubernetes kubeconfig has permissions to create Kubernetes namespaces.
You require persistent storage classes defined in your OpenShift cluster. Storage classes can be defined by OpenShift cluster administrators.
Only TLS-enabled custom Docker Registry is supported. Ensure that you use a TLS certificate to secure the custom Docker Registry. The TLS certificate can be self-signed, or signed by a private or public trusted Certificate Authority (CA).
Only TLS 1.2 is supported for authentication with Active Directory/LDAP. You require TLS 1.2 to authenticate the Cloudera Control Plane with your LDAP directory service like Active Directory.
OCP network configurations that restrict pod communication are not supported. For example, multi-tenancy isolation with network policy is not supported.

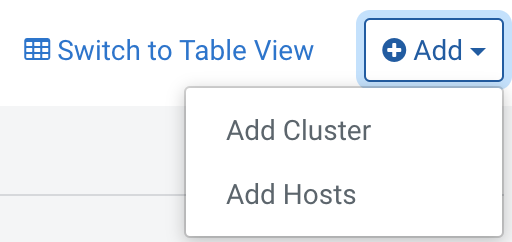

In Cloudera Manager, on the top right corner, click Add > Add Cluster. The Select Cluster Type page appears.

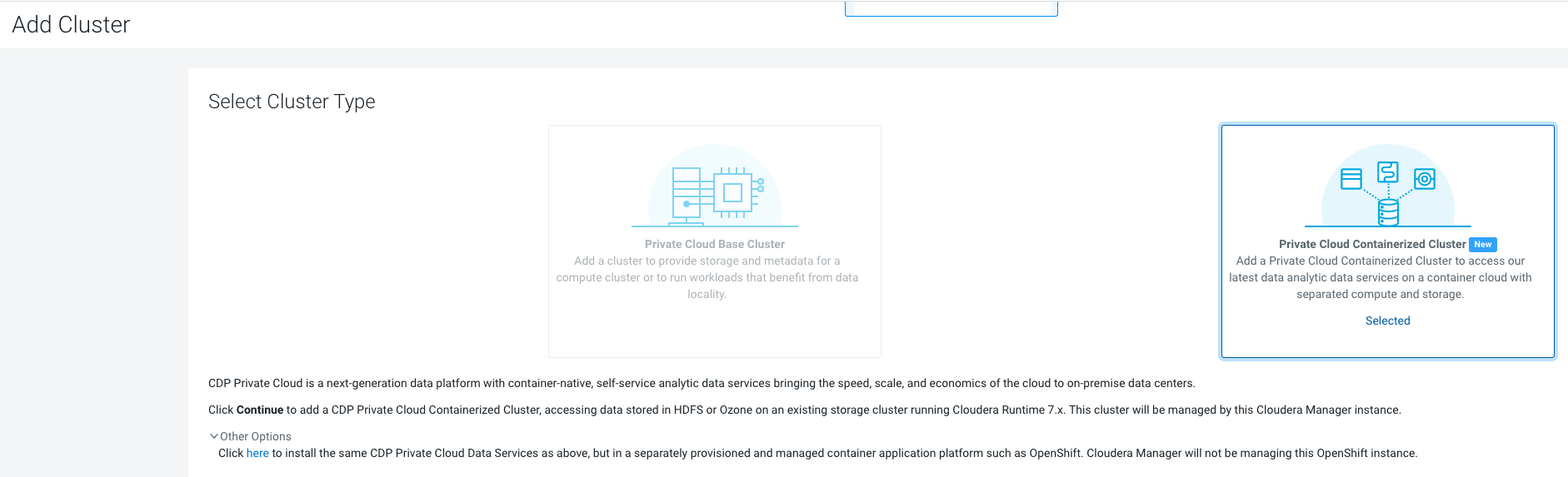

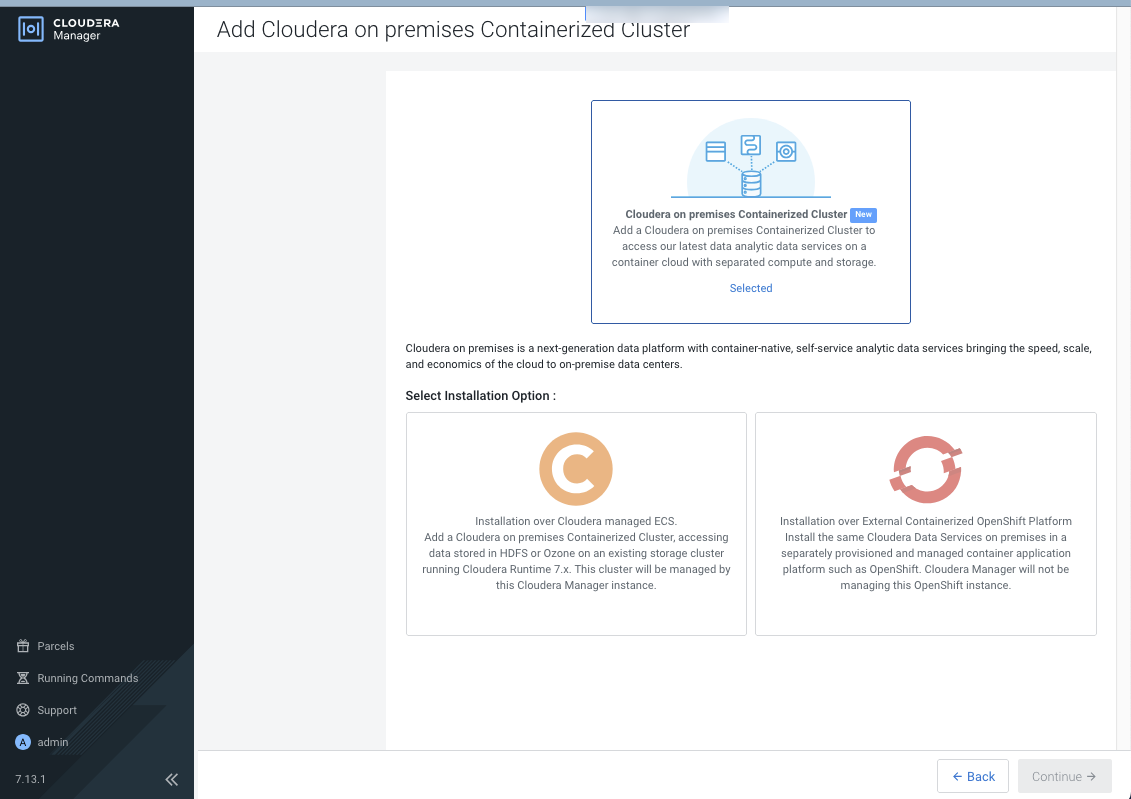

On the Select Cluster Type page, select the cluster type as Cloudera on premisesContainerized Cluster. Under Other Options, click here to install Cloudera Data Services on premises, then click Continue.

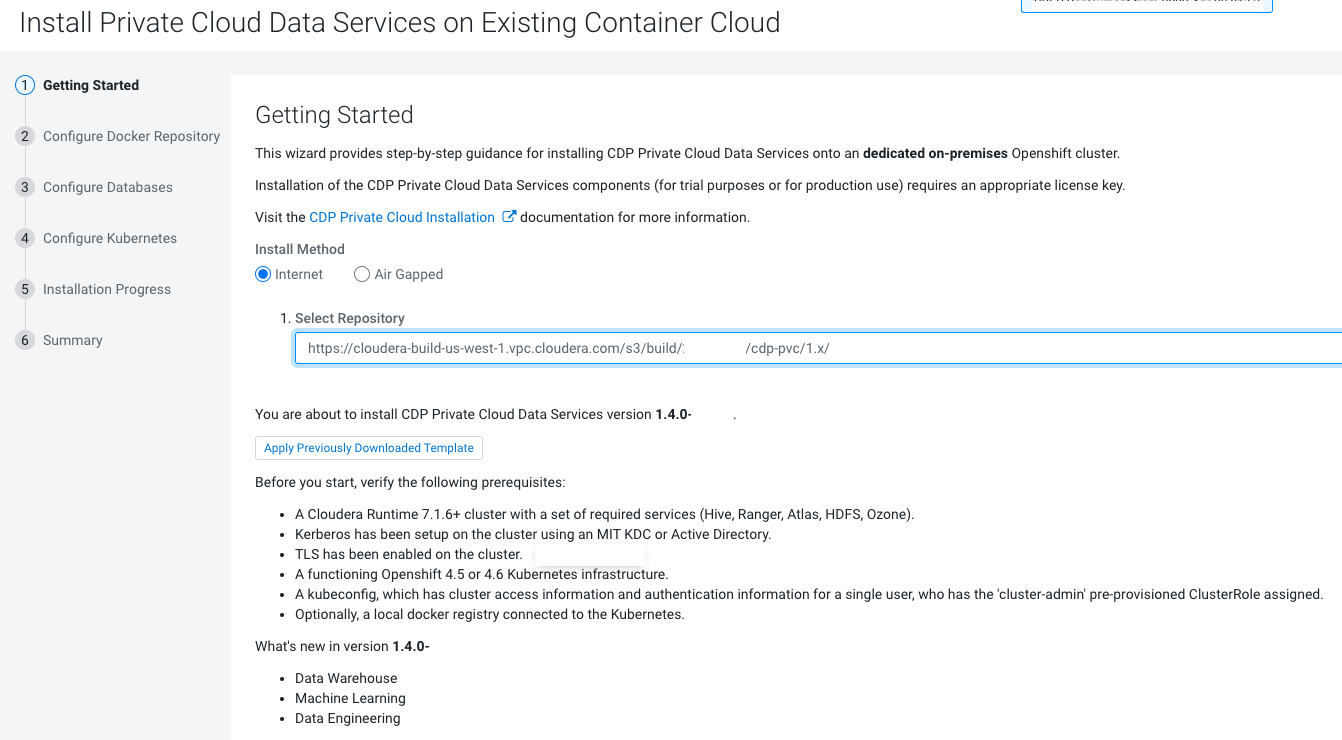

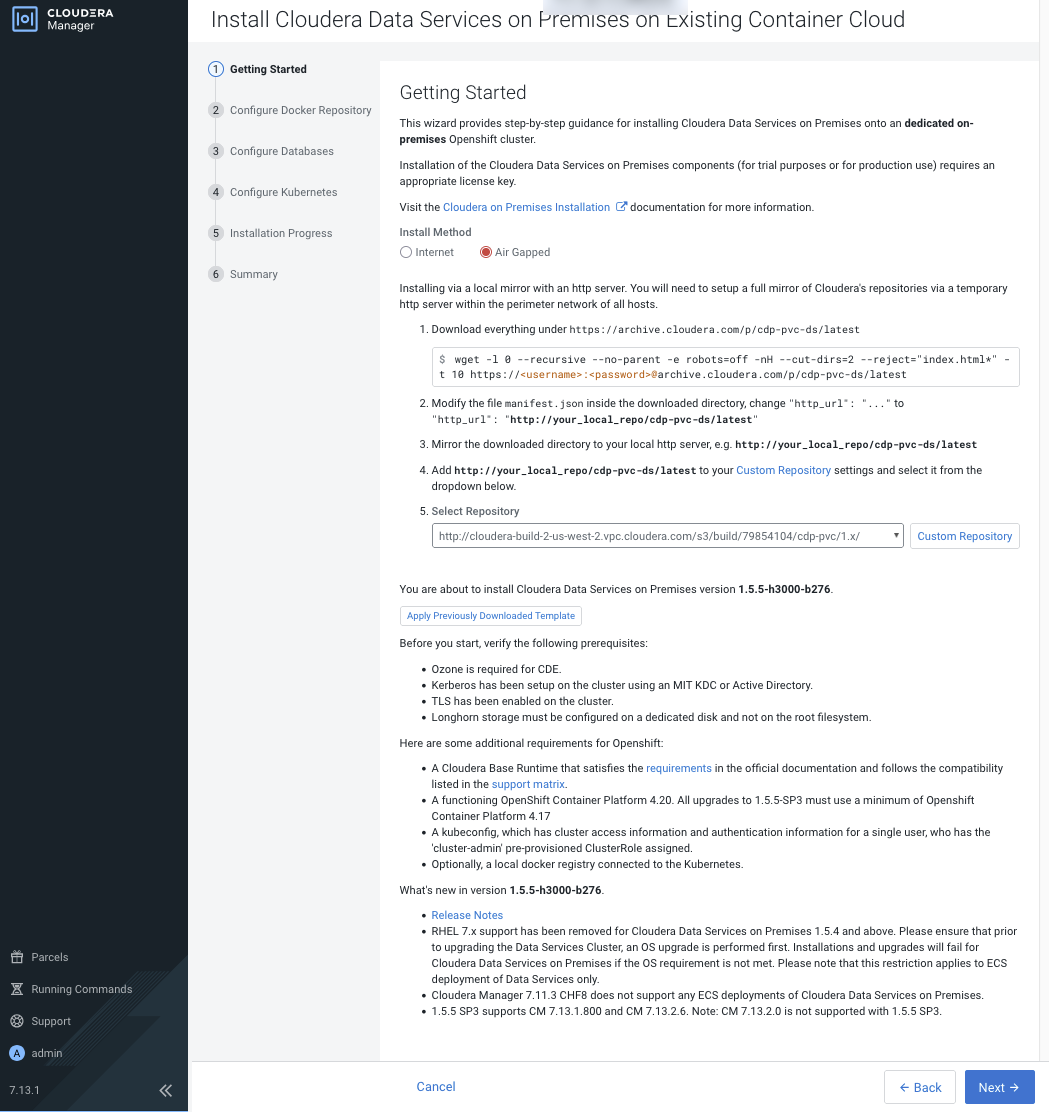

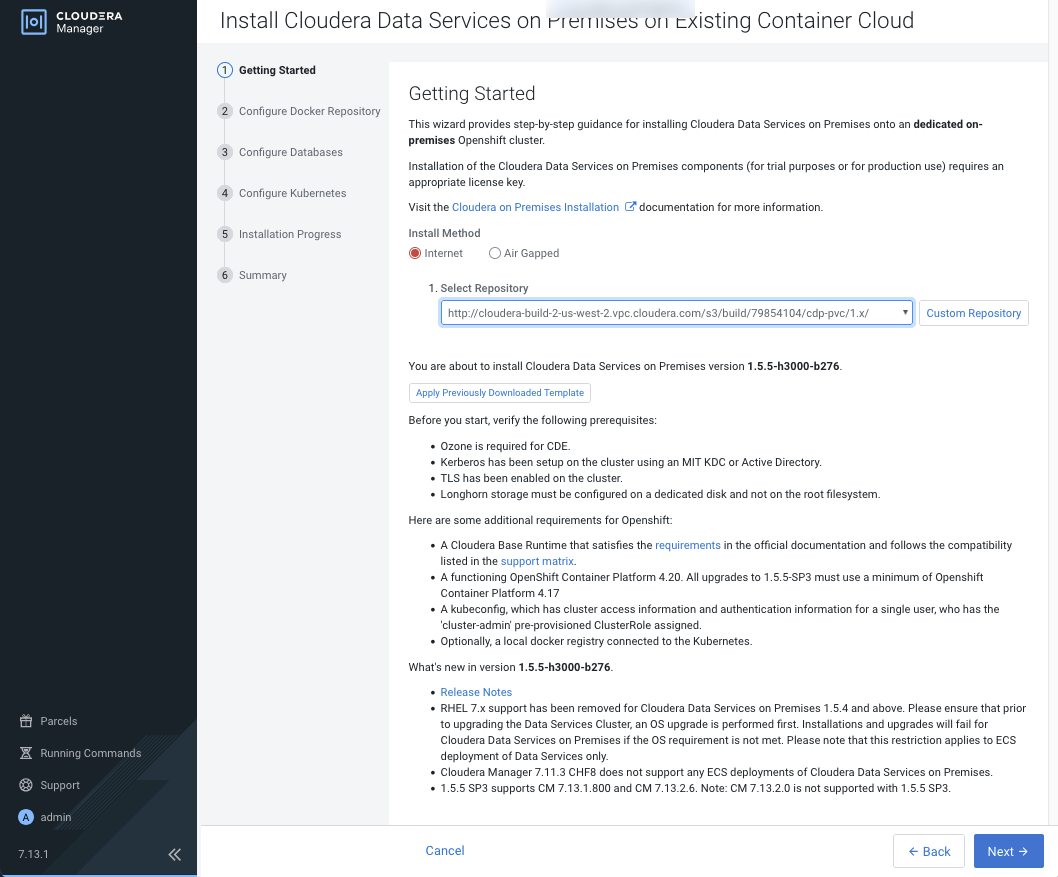

On the Getting Started page of the installation wizard, select Internet as the Install Method. To use a custom repository link provided to you by Cloudera, click Custom Repository. Click Next.
note
- Verify the prerequisites for the version that you’re installing and then click Next.
- You can also apply a template that you may have downloaded during a previous installation. The template contains all the installation configurations. Click Apply Previously Download Template to browse and upload a template stored on your machine.

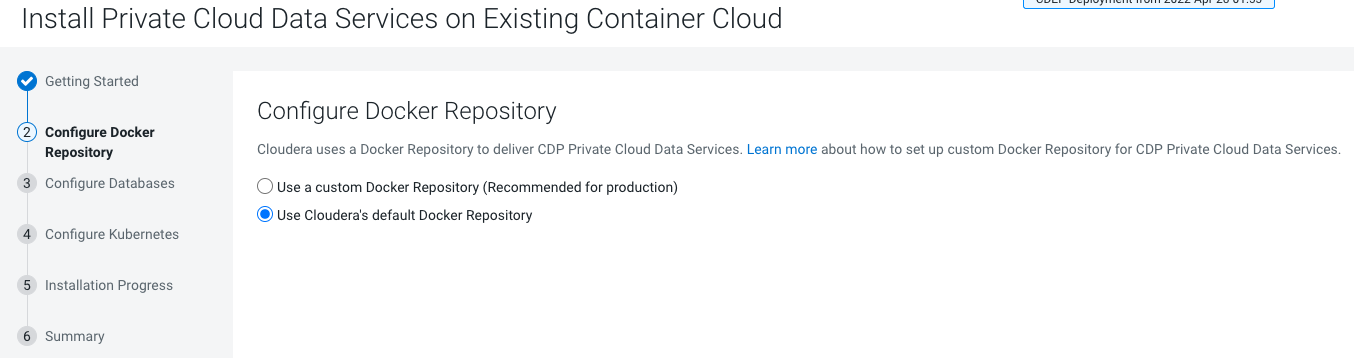

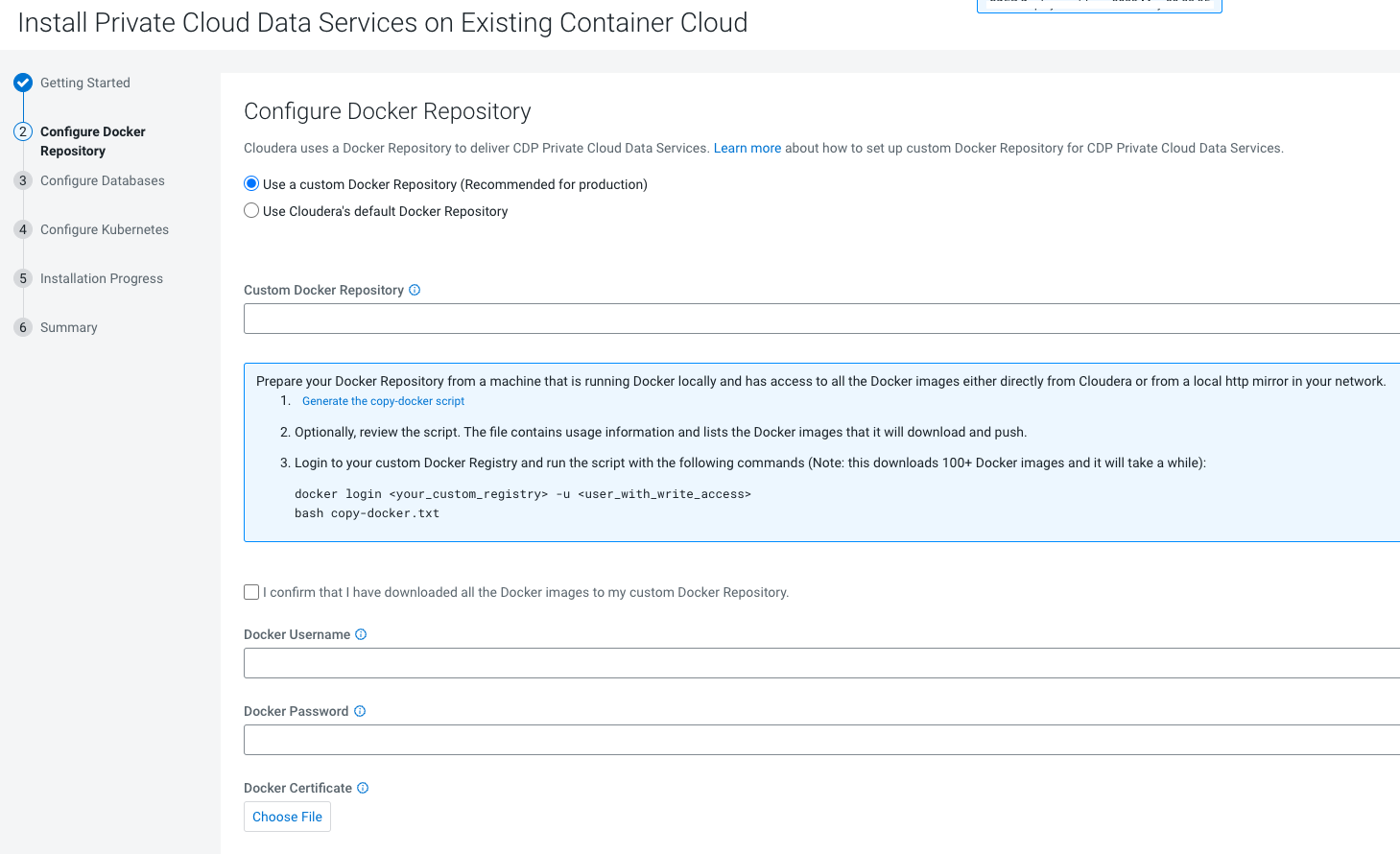

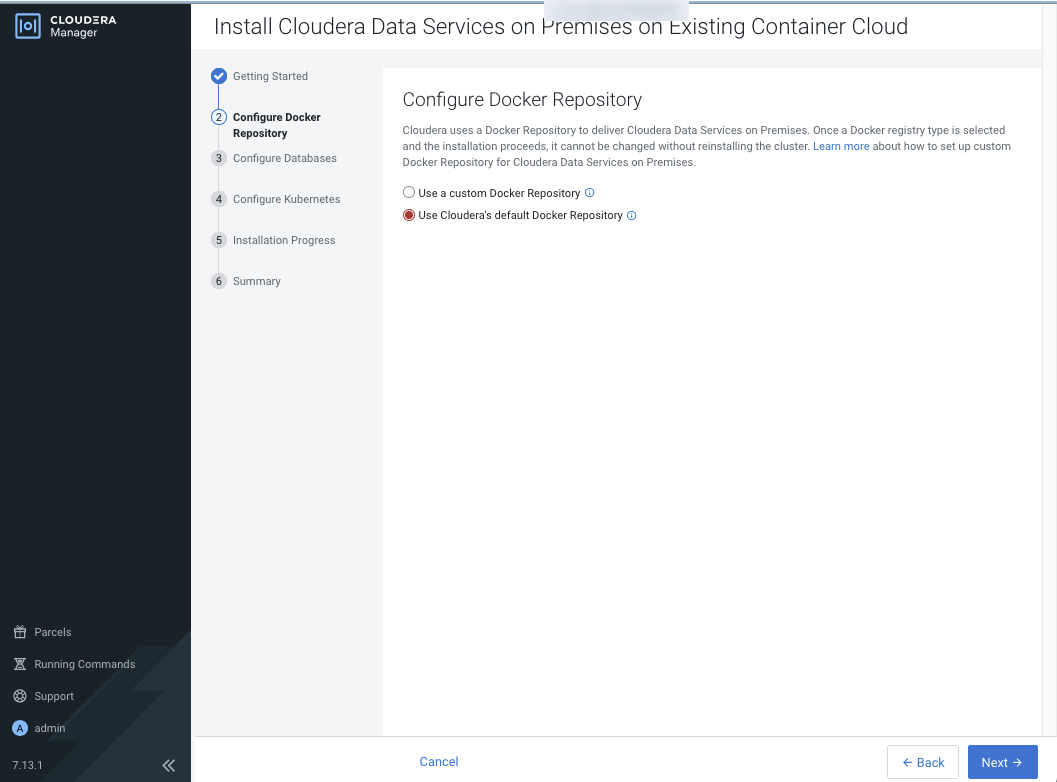

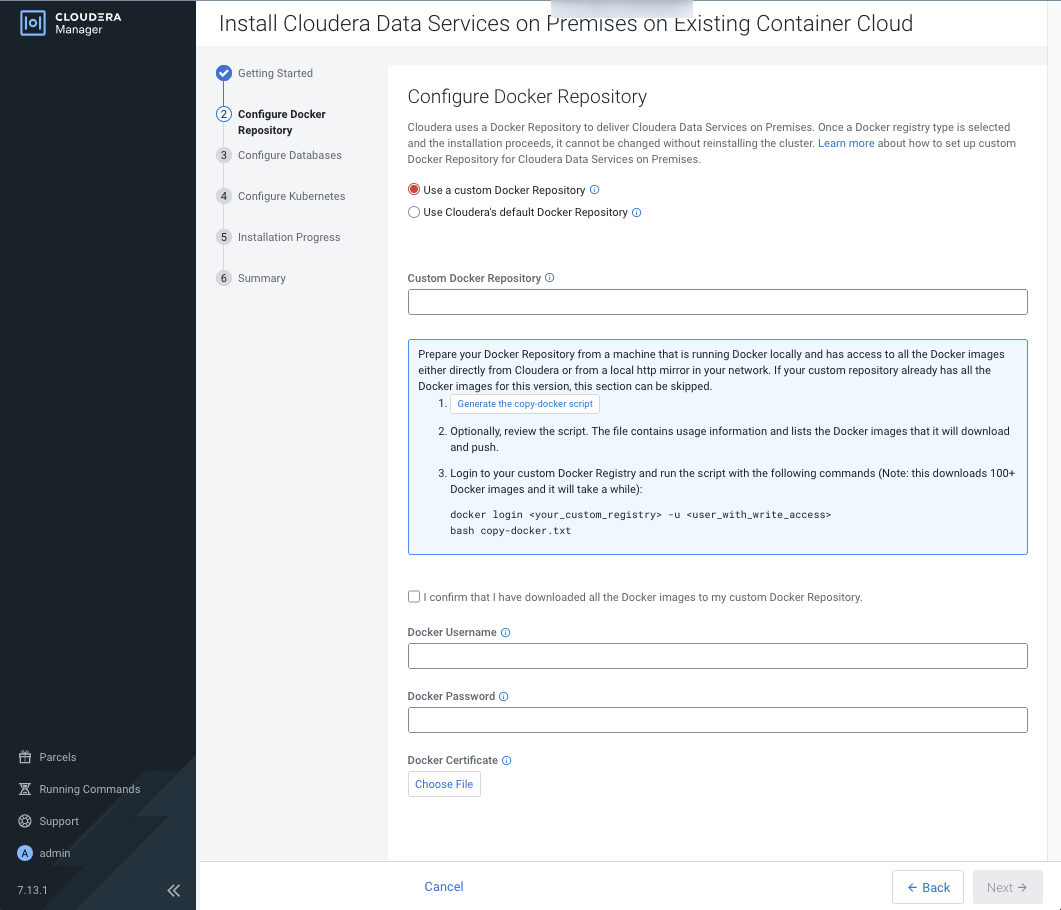

On the Configure Docker Repository page, you must select one of the Docker repository options. If you select Use a custom Docker Repository option, enter your local Docker Repository in the Custom Docker Repository field in the following format:[*DOCKER REGISTRY*]/[*REPOSITORY NAME*]. Alternatively, you can use Cloudera default Docker Repository if you are setting up Cloudera on premises in non-production environments.
note
- Use a custom Docker Repository - Copies all images (Internet or Air Gapped) to the embedded registry
- Use Cloudera default Docker Repository - Copies images from Internet to the embedded registry. This uses the default repository that is in manifest.json. Use Cloudera default Docker Repository option can be selected only if you have selected Internet as the install method.
You can follow these steps to prepare your Docker Repository from a machine that is running Docker locally and has access to all the Docker images either directly from Cloudera or a local HTTP mirror in your network.
1. Click Generate the copy-docker script on the wizard or download the script file.
2. Log in to your custom Docker Registry and run the script using the following commands.
```
docker login <your_custom_registry> -u <user_with_write_access>
bash copy-docker.txt
```
  note
  This command downloads 100+ Docker images and it will take some time to download.
3. Enter your Docker user name and password.
4. Click Choose File to upload your Docker certificate.
5. Click Next.

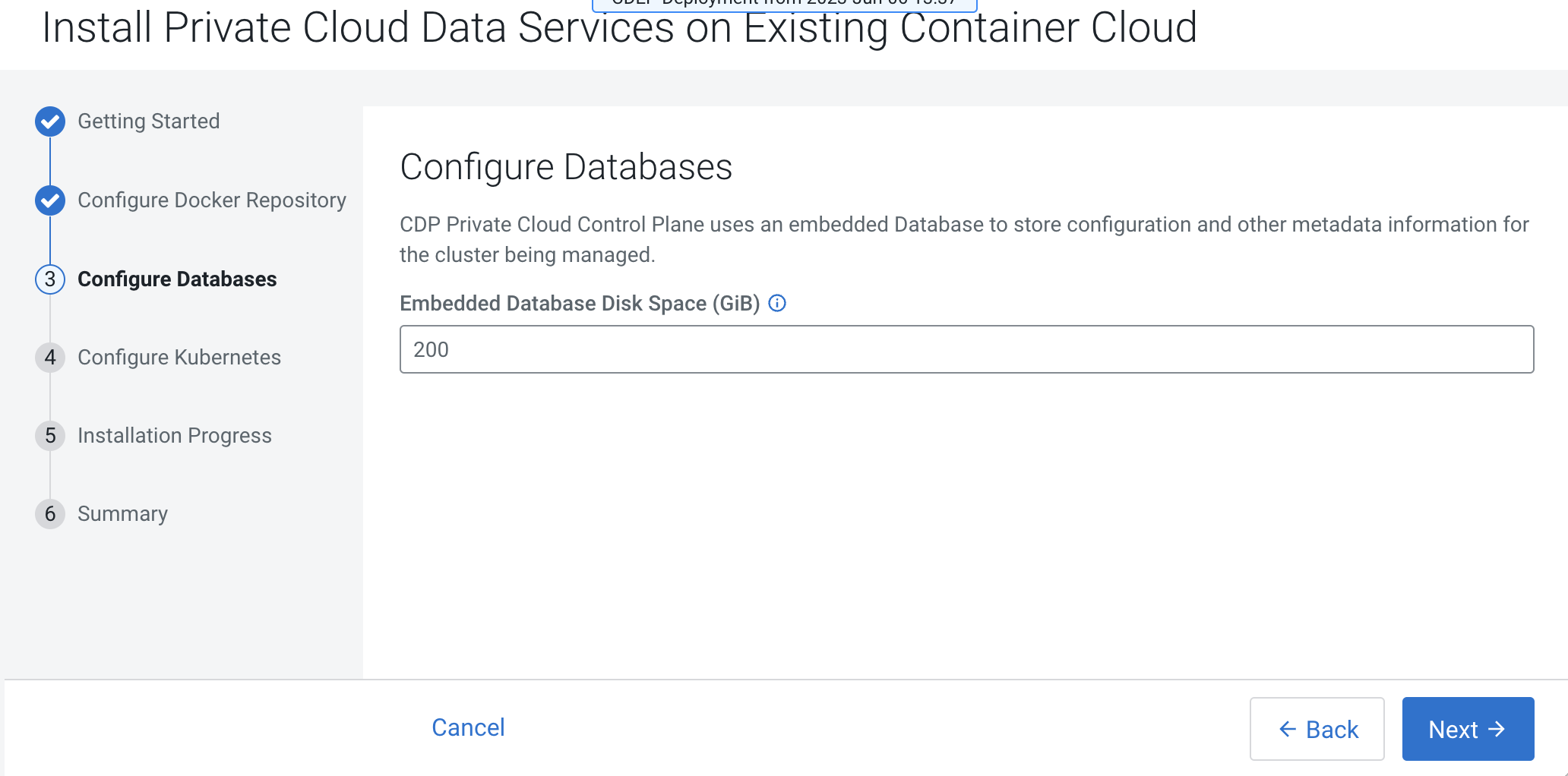

On the Configure Databases page, click Next.

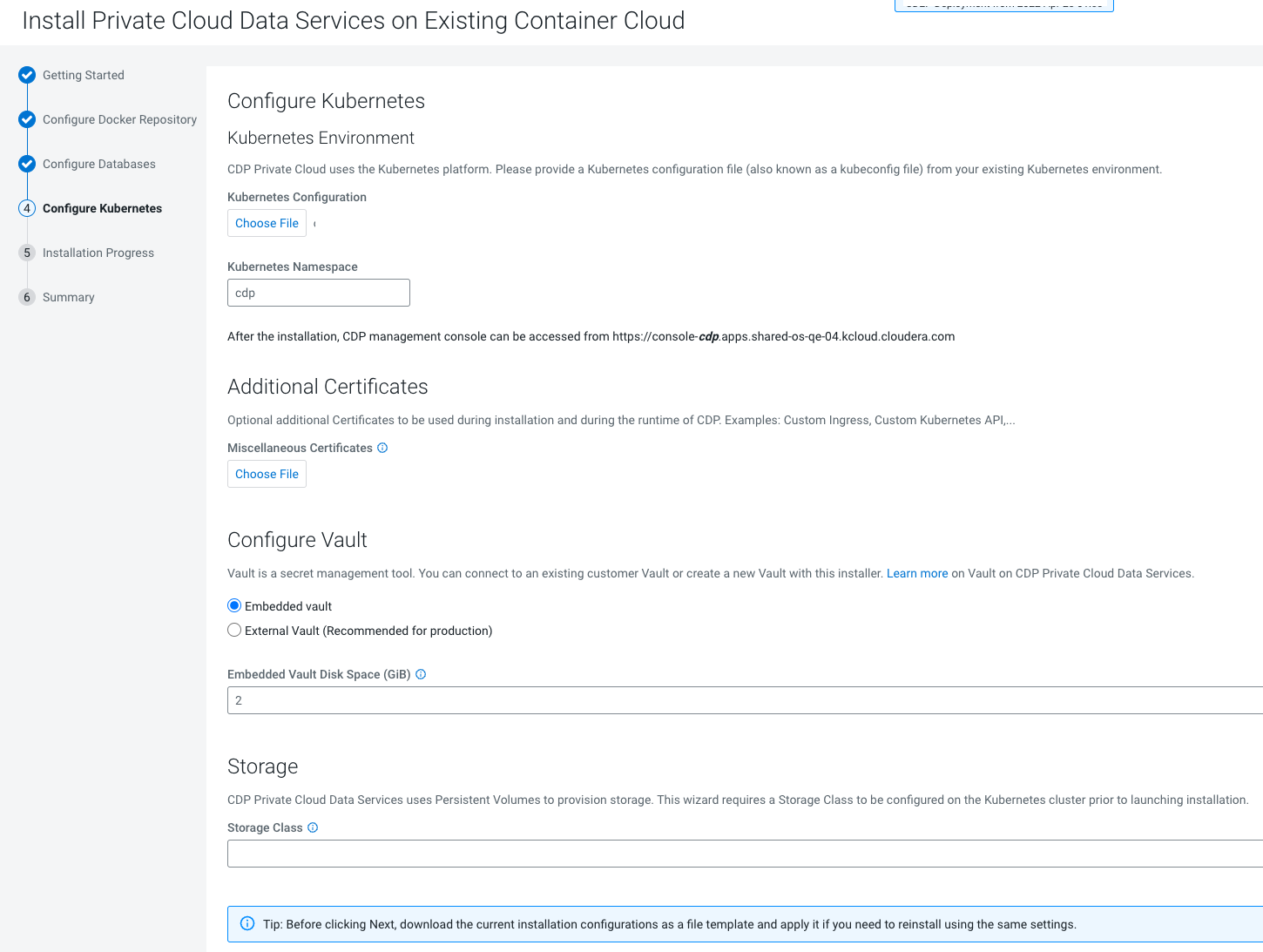

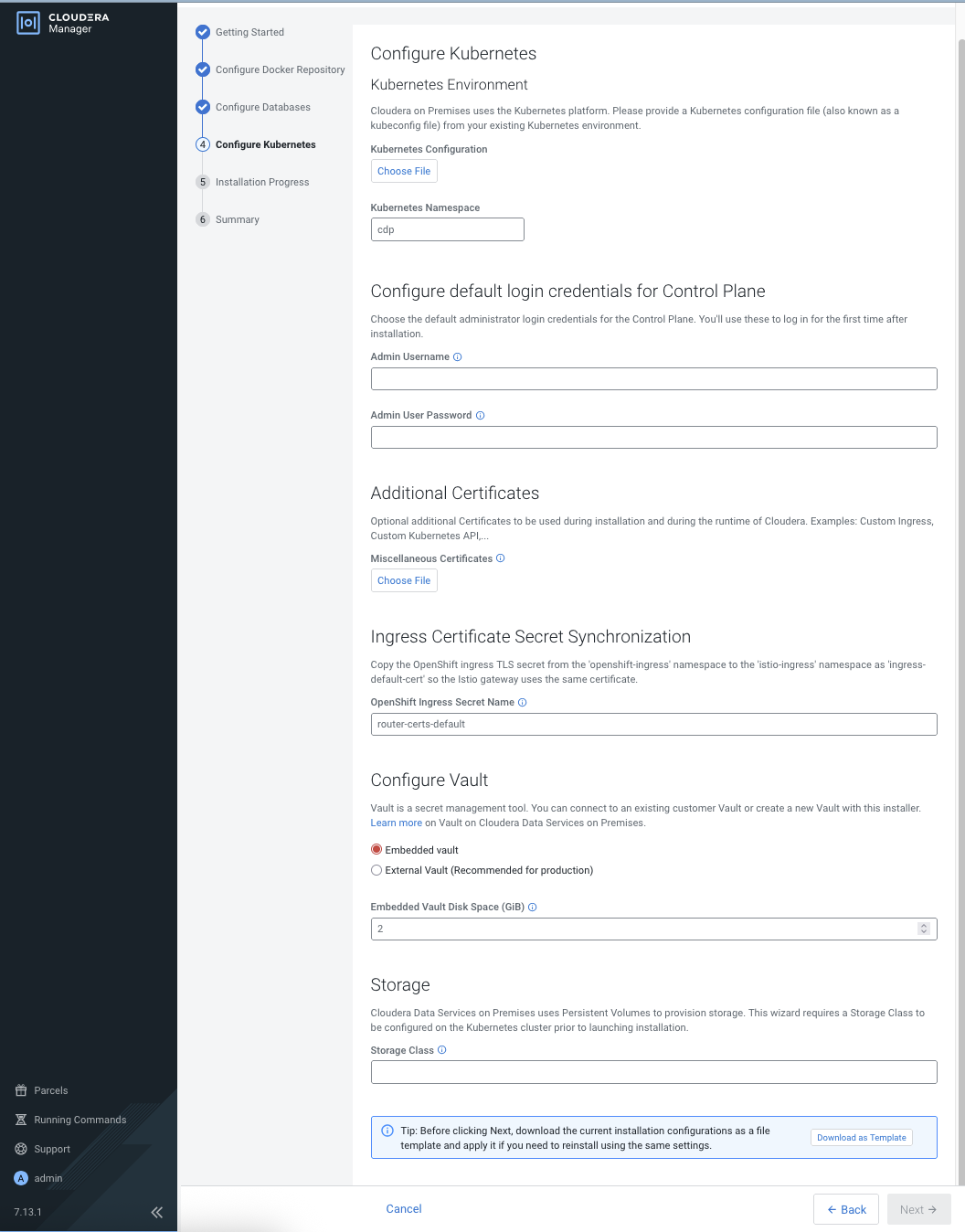

On the Configure Kubernetes page, enter your Kubernetes, Docker, database, and vault information.
1. Upload a Kubernetes configuration (kubeconfig) file from your existing environment. You can obtain this file from your OpenShift Container Platform administrator. Ensure that this kubeconfig has permissions to create Kubernetes namespaces.
2. In the Kubernetes Namespace field, enter the Kubernetes namespace that you want to use with this Cloudera on premises deployment. Kubernetes virtual clusters are called namespaces. For more information, see Kubernetes namespaces
3. Enter your Vault information and upload a CA certificate. Cloudera recommends that you use an external Vault for production environments. Enter the Vault address and token, and upload a CA certificate.
4. Enter a Storage Class to be configured on the Kubernetes cluster. Cloudera on premises uses Persistent Volumes to provision storage. You can leave this field empty if you have a default storage class configured on your Openshift cluster. Click Continue.
5. Under the Additional Certificates section, click Choose File and add the SSL certificate for your HMS database (MariaDB, MySQL, PostgreSQL, or Oracle). For Cloudera Data Warehouse, it is mandatory to secure the network connection between the default Database Catalog Hive MetaStore (HMS) in Cloudera Data Warehouse and the relational database hosting the base cluster’s HMS.
If you want to use this installation configuration again to install Cloudera on premises, you have the option to download this information as a template.

The template file is a text file that contains the database and vault information that you entered for this installation. This template is useful if you will be installing on premises again with the same databases, as the template will populate the fields here automatically. Note that the user password information is not saved in the template.

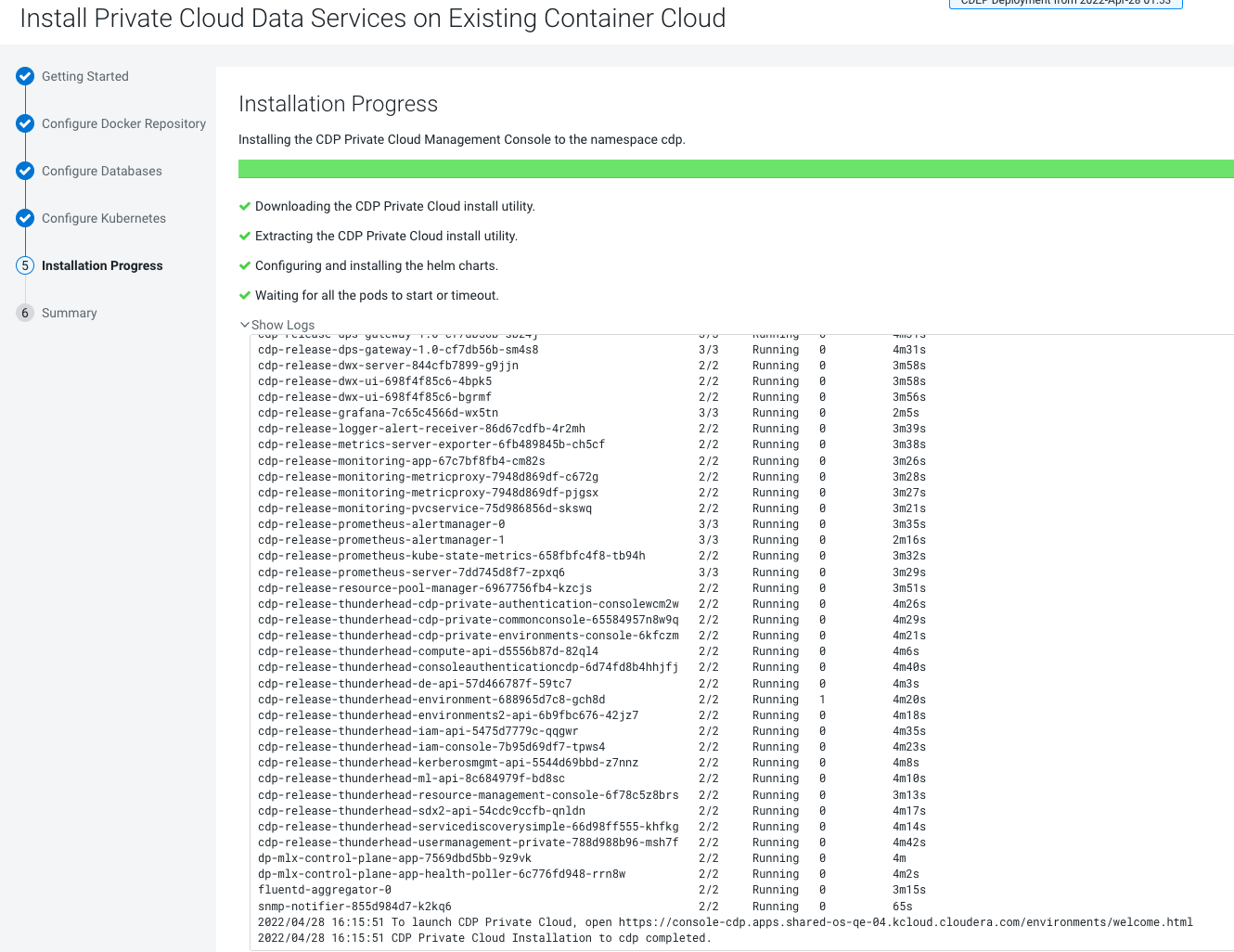

The Installation Progress page appears. When the installation is complete, click Next.

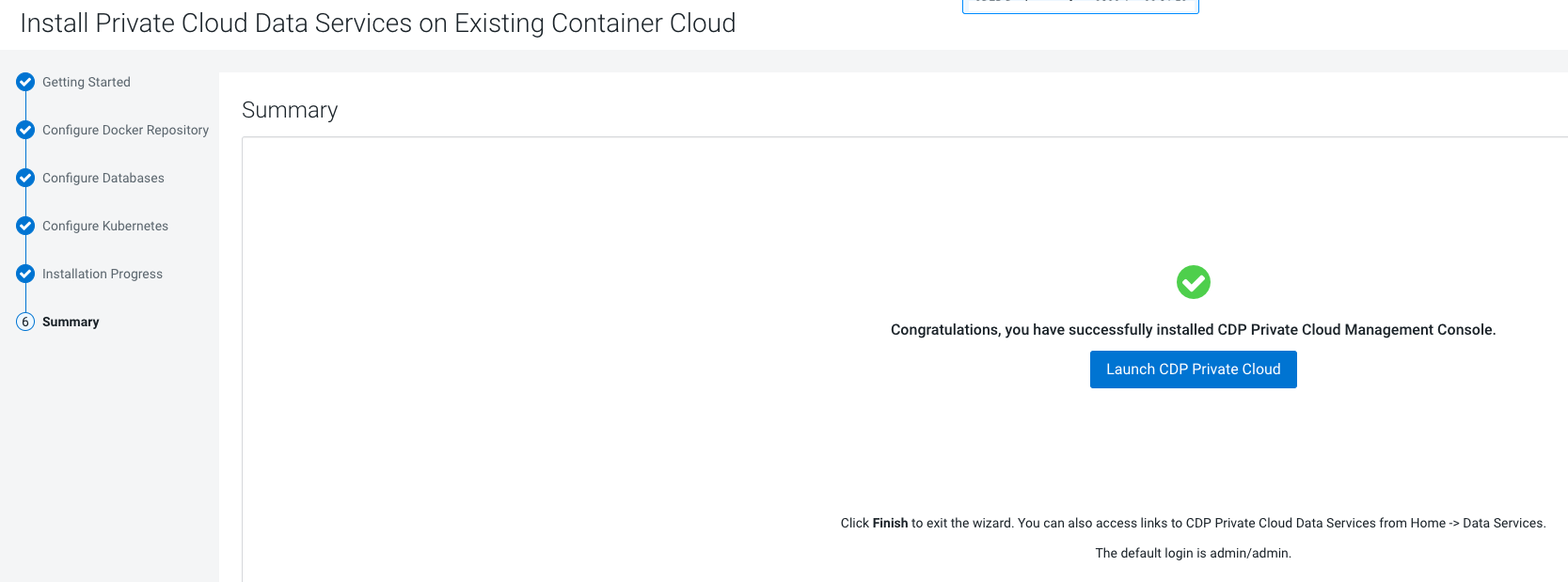

The summary message with a link to Launch Cloudera on premises appears.

Click Launch Cloudera on premises to launch your Cloudera on premises.
Log in using the default user name and password admin.
In the Welcome to Cloudera on premises page, click Change Password to change the Local Administrator Account password.
Set up external authentication using the URL of the LDAP server and a CA certificate of your secure LDAP. Follow the instructions on the Welcome to Cloudera on premises page to complete this step.
Click Test Connection to ensure that you are able to connect to the configured LDAP server.
Register a Cloudera on premises environment
Create your first Virtual Warehouse in the Cloudera Data Warehouse Data Services
Provision an Cloudera AI Workbench in the Cloudera AI Data Services
